RIEVBCAU Digital Microscope 1200x Magnification HD USB Professional Electron Microscopios For Repairing With 10 LED Light
RIEVBCAU Digital Microscope 1200x Magnification HD USB Professional Electron Microscopios For Repairing With 10 LED Light
SPECIFICATIONS
Brand Name: RIEVBCAU
Hign-concerned Chemical: None
Magnification Ratio: 500X - 1500X
Origin: Mainland China
Theory: Video Microscope
Model Number: DM9
Is Smart Device: YES
Features: High Definition
Features: Handheld
Features: PORTABLE
Features: Digital
Certification: CE
Certification: FCC
Certification: RoHS
Material: aluminium alloy
Drawtube: Monocular
Choice: yes
RIEVBCAU Digital Microscope 1200x Magnification HD USB Professional Electron Microscopios For Repairing With 10 LED Lights
Product Parameters:
Product name: DM9
Video maximum pixel: 1080FHD
Lens optic size: 1/4”
Picture resolution: 16M,12M,10M,8M,5M,3M
Video resolution: 1080FHD,1080P,720P
Video format: avi
Focus mode: manual
Picture format: JPG
Magnification times: 1200X
Digital zoom: support
Illuminant: 8 LED lights (brightness adjustable)
Focusing range: 10~40mm(can watch distant view)
PC resolution and image transfer rate: 1280*720/30fps
White balance: automatic
Exposure: automatic
PC operating system: Win7,win8.1,win10,Mac OS x 12 or higher
Supported language: English, Portuguese, Simplified Chinese, Traditional Chinese, Japanese, French, German, Korean, Russian, Spanish, Arabic, Italian, Dutch
Lens construction: 2G+IR
Aperture: F4.5
Lens angle: 16°
Interface and Signal Transmission Mode: Micro/USB2.0
Operating temperature: -20°C ~ +60°C
Operating humidity: 30%~85%RH
Working current: 700mA
Power dissipation: 3.5W

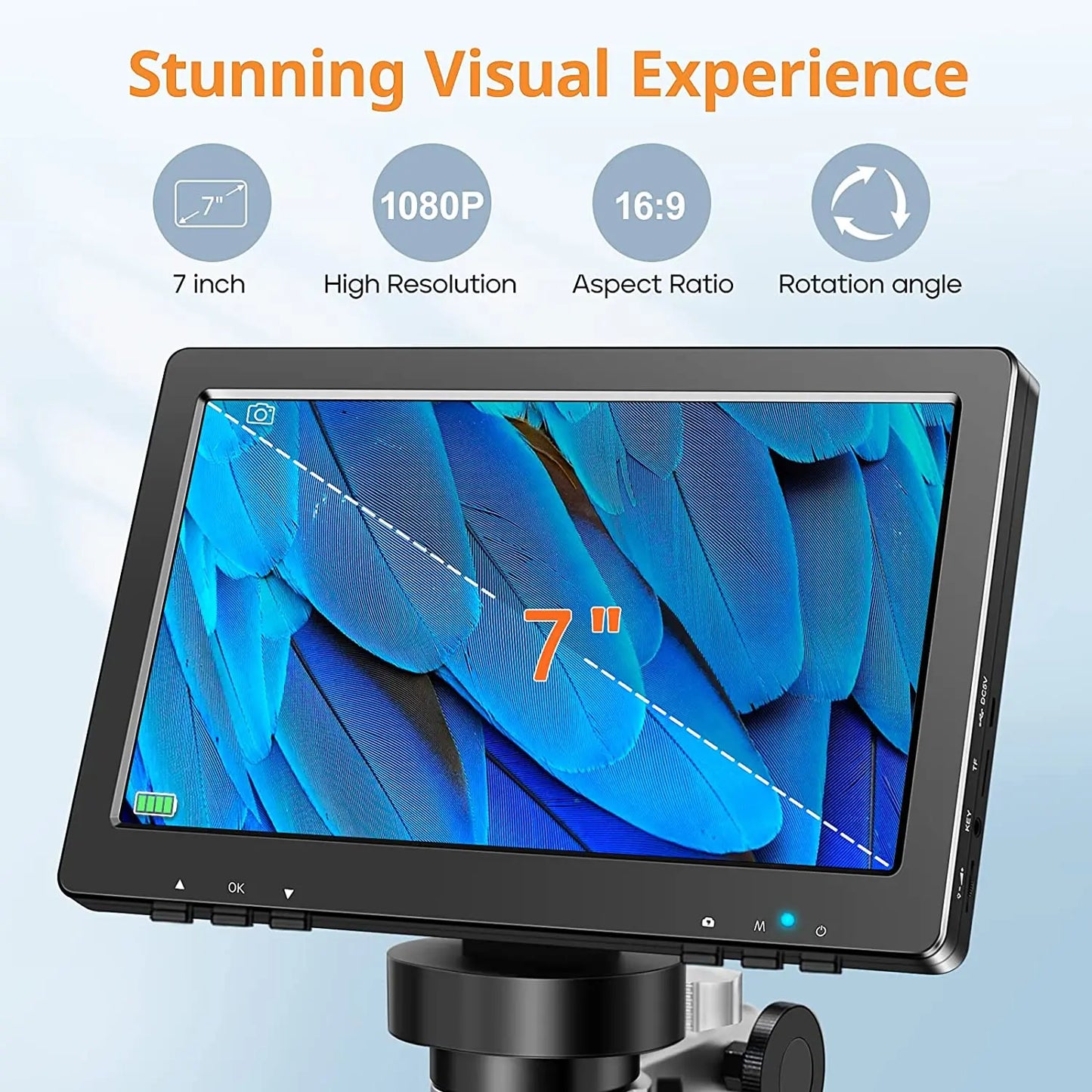

ANGLE ADJUSTABLE 7 INCH LARGELCD SCREEN
RIEVBCAU 7 inches large HD LCD screen,Up to 1200x magnification provides a broad field of view for easy viewing. The large screen allows you to quickly adjust the image and instantly view,Large screen with adjustable angle will give you a better visual experience.
10-1200X DIGITAL MAGNIFICATION
Our microscope for adults provides 10-300X continuous magnification(other similar microscope only can offer 50X or 300X magnification,not continuous),10x-1200X continuous magnification allows you to view a wider range and easily find the suitable multiple for you.
8 LED LIGHTS+2 FLEXIBLE SIDE LIGHTS DESIGN
The 8 Adjustable LED illuminator only ensure most of parts bright and clear,but some parts still very dark and can't observe,the 2 brightness-adjustable side lights are flexible enough and can illuminate different angles,which ensure all the parts bright and clear
HOOK UP TO PC FOR LARGER VIEW
Connect RIEVBCAU coin microscope to the PC/laptop(Windows and Mac OS Compatible) to observe in larger scale and facilitate data sharing and analysis.Just plug and play,no need to download extra software,run the default software "Windows Camera" for Windows 10 and "Photo Booth" for iMac/MacBook

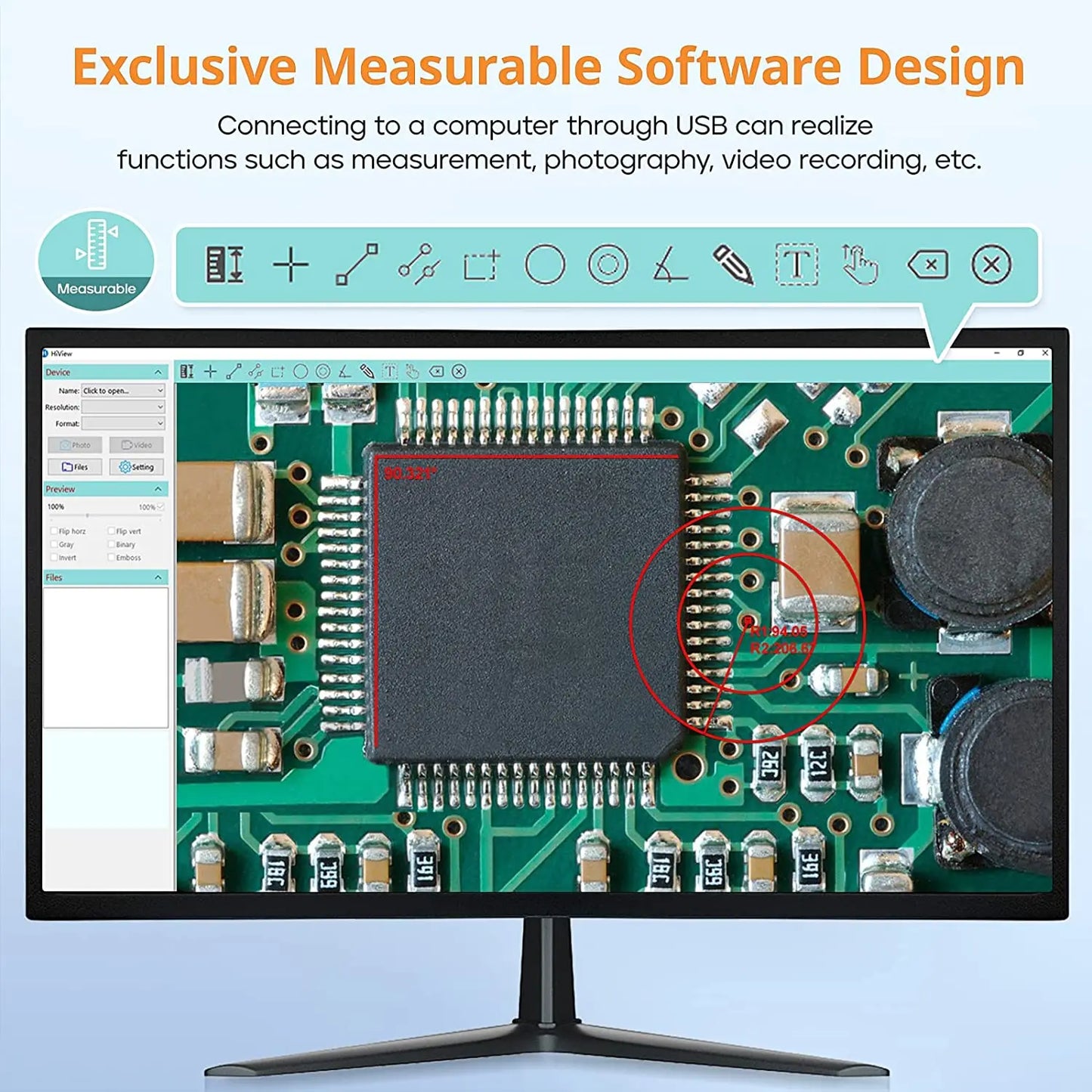

Exclusive Software Design
RIEVBCAU microscope camera software can flexibly measure dimensions, angles, areas, perimeters, radii, etc. Now upgrade to display the following professional image effects: Flip horz, Flip vert, Gray, Binary, Invert, Emboss.Making work more accurate and efficient!TAKE PHOTO AND RECORD VIDEO
RIEVBCAU video microscope can take 12MP (4023*3024) photos, record 1080FHD 1920*1080 30fps video, and store it in the 32GB micro sd card(included).There are 2 ways for taking photo and video,press the button on the host or use the wired remote,we suggest use the wired remote, which can reduce the camera shake and take clearer photos and videos
ADJUSTABLE ALUMINUM ALLOY STAND
45 degree front and rear, can improve the problems with vertical high reflection.15cm up and down , can observe larger range,the aluminum stand more heave than plastic stand and make you view the object more steadily and accurately
GREAT GIFT
RIEVBCAU LCD digital microscope is perfect for circuit board inspection, QC inspection, watch/clock repair, textile industrial,biological observation(not suitable for cells), medical professionals, scientific researchers, insects, coins, jewelry, and stamps. It's the best gift for children, students, hobbyists, and other users
What's in the box?
LCD Microscope * 1
Aluminum Base * 1
32GB SD card * 1
Wired Remote * 1
Aluminum Holder * 1
USB Cable * 1
User Manual * 1
Straightedge * 1
Light Barrier * 1 (Take off the lens protector the barrier on the lens)
